Description

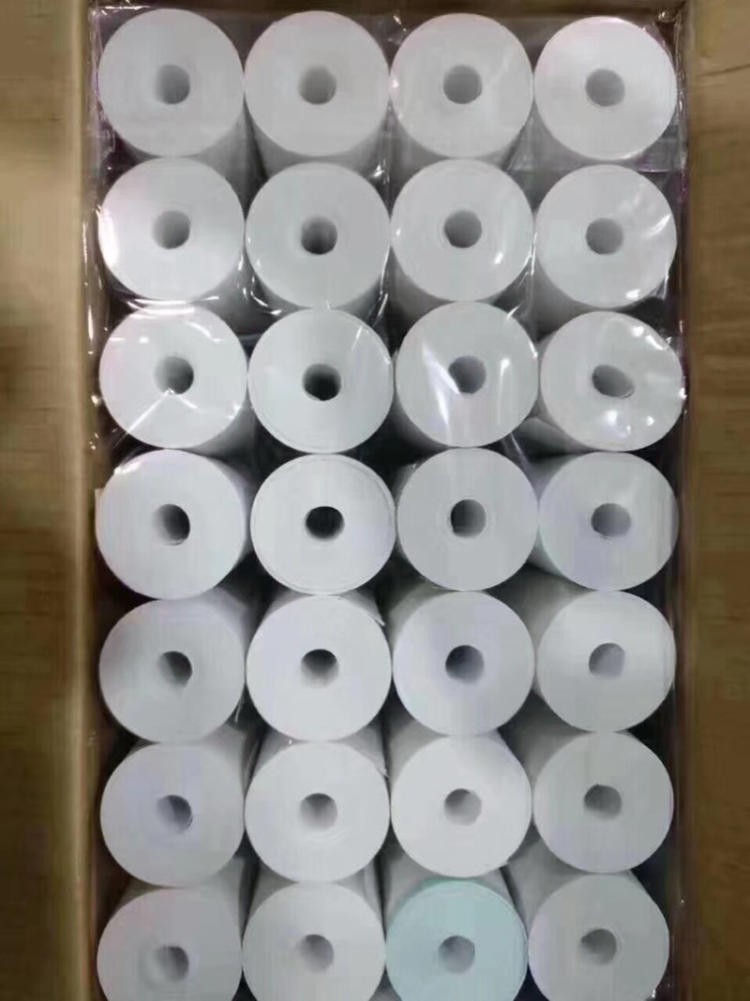

Thermal Paper Roll Size Description:
· Suitable for receipt printers that require 57mm thermal paper rolls, widely used as the credit card terminal receipt, POS receipt in retail store, restaurant, pharmacy, logistics and gas station, etc.
· Made from 55gsm, 60gsm, 65gsm premium quality, the paper delivers an original dark, sharp and clear image
· 12.7mm standard plastic core, wrapping or shrinked packing in the carton
The precoat layer improves heat insulation, smoothness, uniformity, and anchoring of the thermal layer.
Width: 2 1/4″
Length: 50′
Core Inside Diameter: 1/2″
Core Outside Diameter: 5/8″
Total Diameter: 1 1/2″
Case Pack: 10 Rolls Bulk
Case Weight: 1lbs
BPA Free – Made in China
THERMAL PRINTING
Thermal paper is a recording media to be printed with heat from the thermal printer. The image is produced by heat, without printing ink, when the selected area of the thermal paper passes over the thermal print head. The image is created through the direct transfer of heat (thermal energy) to the thermal paper: thermal paper has a coating, which changes color to black when exposed to heat. No ink ribbon, toner or ink cartridge is required to record information on the thermal paper. Thermal printing is done with small, compact thermal printers that do not need much maintenance. Thermal paper is widely used in many applications, such as labels, tickets, POS receipts, medical charts, because of its high reliability and convenience.
THERMAL PAPER STRUCTURE
Thermal paper consists of a base paper and a few special coating layers. On the surface side (the recording side), the precoat layer and the thermal layer are coated.
Base paper
The first layer of the thermal paper is base paper especially developed for the thermal paper technology. The base paper is coated by thermal layer.
Pre-coat layer
The precoat layer improves heat insulation, smoothness, uniformity, and anchoring of the thermal layer.
Thermal layer
The purpose of this layer is to produce images with a thermal reaction. In practice, the paper turns black in the heated areas due to this layer with chemicals like dye, developer, and sensitizer.
TOPCOATED THERMAL PAPER STRUCTURE
A topcoat layer is applied on the thermal layer when a high durability of the thermal printing image is needed. Also, the backside layer can be coated to improve both the printability and the reverse side protection against the adhesive.
Topcoat layer
The topcoat layer protects the thermal layer from water, oil, solvent, humidity, scratches, etc.
Backcoat layer
The backcoat layer is applied for de-curling, antistatic electricity treatment, and backbarrier against adhesive.
THERMAL PAPER FEATURES
The main function of thermal paper is “thermal printing”. This is why, in addition to normal paper properties like grammage, thickness or strength, the thermal printing quality, and image stability are important. Furthermore, the pre-printability by conventional printing methods like Flexo or Offset is also required for the thermal paper.
General paper properties
· Basic properties: grammage, thickness, moisture
· Strength properties: tensile and tearing strength, elongation
· Surface properties: brightness, opacity, whiteness, smoothness/roughness, surface strength
· Absorption properties: water, oil, printing ink
Thermal paper properties
· Image stability refers to how many years the thermal print will be readable when stored in correct conditions.
· Density is an optical density value measured from thermal printed image.
· Static sensitivity shows at which temperature the thermal image starts to formulate. Low static sensitivity means that the thermal image starts to formulate at high temperatures. High static sensitivity, in turn, means that thermal imaging starts at low temperatures. If thermal paper is used at high-temperature conditions, the static sensitivity is a very significant feature.
· Dynamic sensitivity shows how fast and with what energy level the thermal paper can be printed. Basically, higher dynamic sensitivity equals better quality.
Suit device：
Axalto Magic X1000
Blue Bamboo Model P25 Portable Printer, Model H50 Wireless POS Terminal
BioCon 500, 700 Bladder Scanner
Celerex CX 1000 Remote Terminal
Citizen CBM262, CBM270
Clover Mini, Mobile
Datecs PP-55 Palm Printer
EMCO/Wheaton Tank Monitor II
Extech S1500T, S2500THS
First Data FD400 Credit Card Terminal
Hypercom I.C.E.4000, 4000CE, 5000, 5500, 6500, T7P-T
Ingenico iCT200, iCT 220, iCT250, iWL255, iWL252, BIO930, EFT930 Series, EFT930S-L, EFT930S, EFT930S
LinkPack 3000, 9000, 9100
MagIC 6000
Match CONSULT-II
Nurit 2080, 2085, 2090, 3000, 3010, 3020, 5000, 504, 505, 8000, 8320
Omni 3200, 3210, 3300, 3730, 3740, 3750
Omniprint J.C. 1160 Series, OM20
Oneil 2t, 2te
Printek Mt2
Royal Alpha 583CX, 600SC, 9155SC
Samsung ER5200, ER5240, STP-103, STP-131
Schlumberger MagIC 6000, MPT/ICC SII
Sharp 01PU, XE-A201
Standard Register S40
Talento Dassault
Veeder Root TLS350
Verifone Omni 3200, 3210, 3300, 3350, 3740, 3750, Printer 350, 355, Tranz 420, VX 510, VX 510LE, VX 520, VX 570, VX 610, VX 810 Duet, VX 820 Duet
